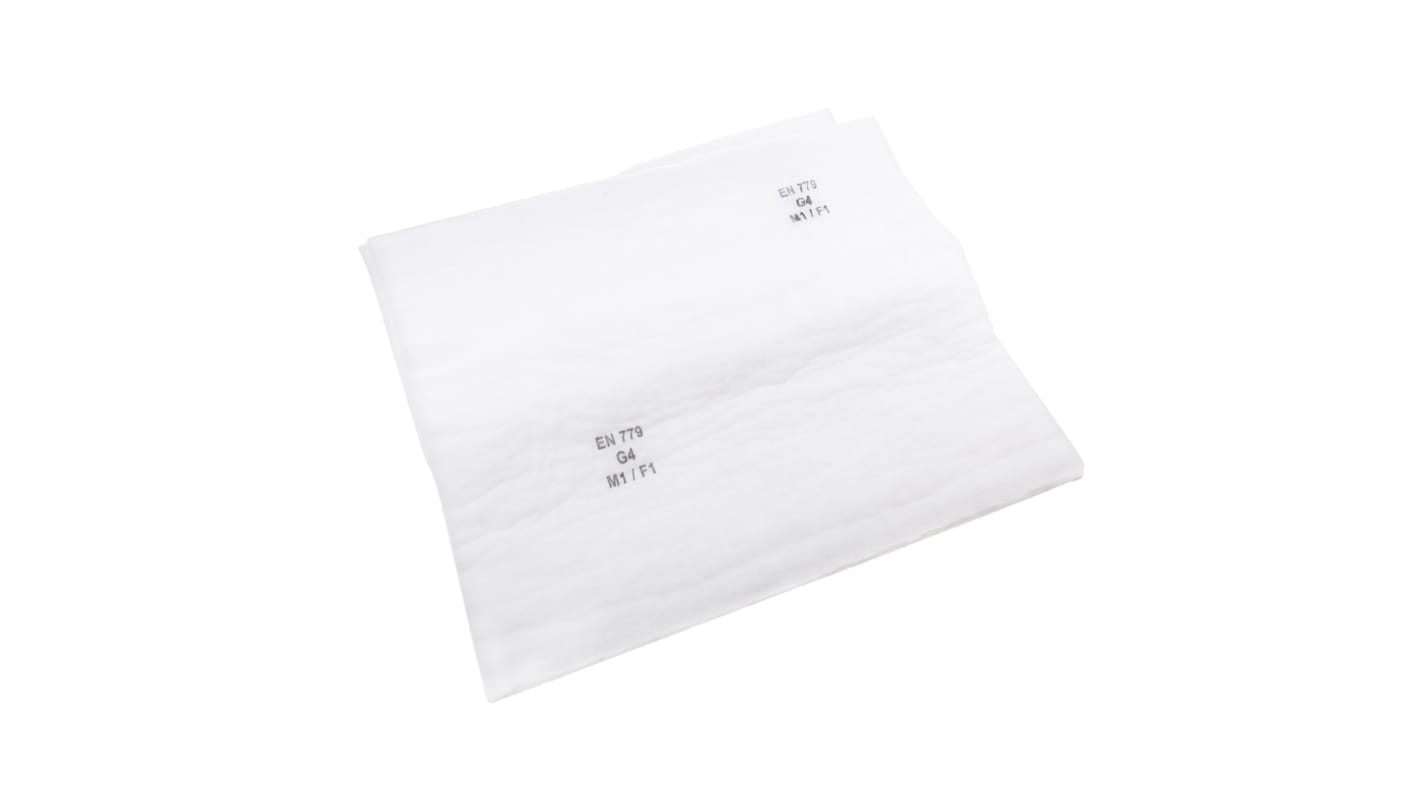

RS PRO Media Roll Filter, Polyester Media, G4 Grade, 1000 x 2000 x 20mm

  • RS Stock No. 827-9529
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS PRO Synthetic Fire Rated Filter Media

Brought to you by RS PRO is a fire rated synthetic HVAC filter media formed from thermobonded non-woven 100% PET fibres with flame retardant properties.

Features and Benefits:

• Thermobonded
• Flame retardent
• Polyester media
• G4 Grade
• Thermal stability 90°C
• 20mm thickness
Dimensions: (H x W x D)
1000 x 2000 x 20 mm

How do air filters work?

Used in heating, ventilation and air conditioning, HVAC filters are generally made of gauze like material. This provides a small passage for air to flow through whilst also stopping larger particles. Standard air filters are designed with efficiency in filtration, as they collect debris and dust. Some more complex filters remove odours and feature a charcoal element. Preventing debris from entering a ventilation, cooling or heating system is vital in ensuring longevity as foreign objects in these types of systems can cause them to overheat and cease functioning.

Why change HVAC air filters?

f these types of filters are not properly attended to, they can become clogged. This can prevent air flow possibly causing the system to overheat and can eventually lead to equipment break down or fires. Changing air filters regularly is vital for health and safety and a HVAC systems longevity.

Specifications
Attribute Value
Filter Type Media Roll
Nominal Dimensions 39 x 78 x 0.8in
Actual Dimensions 1000 x 2000 x 20mm
Filter Grade G4
Initial Pressure Drop 35Pa
Final Pressure Drop 250Pa
Colour White
Media Material Polyester
Actual Width 2000mm
Actual Height 1000mm
Nominal Height 39in
Nominal Depth 20mm
Nominal Width 78in
Actual Depth 20mm
Nominal Dimensions Height x Width 39 x 78in
