Hall Effect Switch Dome Through Hole Momentary, -40 → +85°C

  • RS Stock No. 294-375
  • Mfr. Part No. HP7-DF23321
  • Manufacturer Otto
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Hall Effect Switches

Momentary pushbutton switches, utilising Hall Effect sensor technology, for long life contactless switching and designed to withstand harsh environments. Ideally suited to applications requiring repeated 'jogging', or where continuous positioning of the load is critical. Typical applications include material handling equipment, such as loaders, lift trucks, buckets and shovels on earth moving equipment.

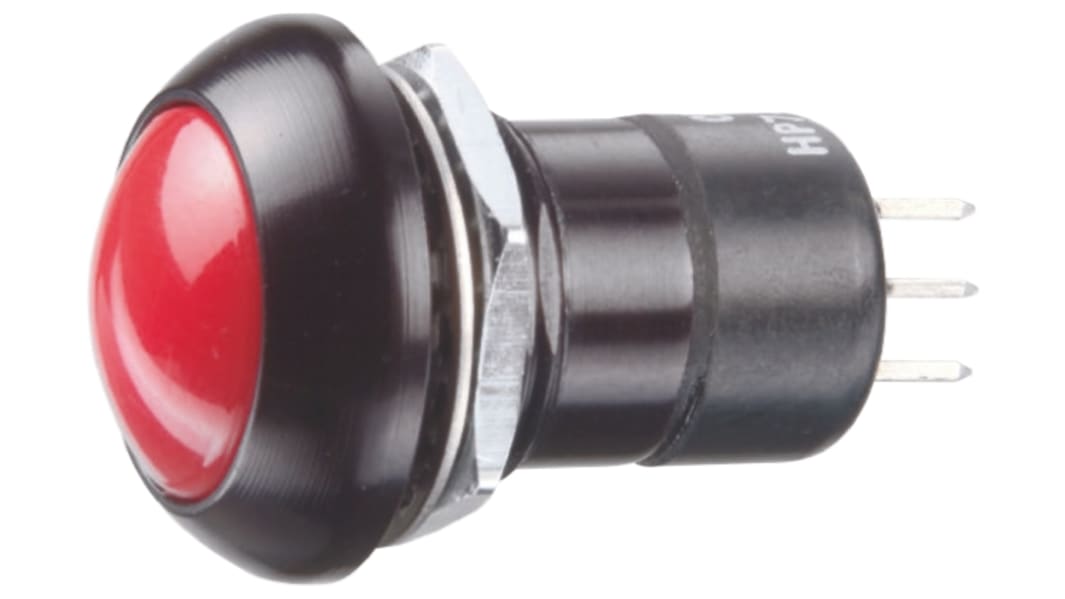

Flush dome switch
Normally high momentary action, incorporating mechanical detent for tactile feedback
Output Voltage: Open collector, Max. current 20mA, Max. off voltage 28V, Output saturation 400mV max. @ 20mA typical
Reverse output 0.5V max.
Reverse voltage protection -18V max.
Operating force 1±0.5 lbs
Total travel 0.08 inch max.
Button material: Nylon

//media.rs-online.com/t_line/L0294375-01.gif
Specifications
Attribute Value
Maximum Supply Voltage 24V dc
Switch Life 10000000Operations
Actuator Type Dome
Terminal Type Through Hole
Switching Action Momentary
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
5 In stock for delivery within 4 working days
Price Each
SGD 94.68
(exc. GST)
SGD 101.31
(inc. GST)
units
Per unit
1 - 24
SGD94.68
25 - 99
SGD90.16
100 - 249
SGD88.03
250 - 499
SGD85.92
500 +
SGD83.89
