ATMI Cable Mount Copolymer Polypropylene Float Switch, Float, 6m Cable, SPDT, 250V ac Max, 125V dc Max
- RS Stock No.:
- 208-5462
- Mfr. Part No.:
- AQUAMEDIUMPVC06M
- Manufacturer:
- ATMI
2 In stock for delivery within 4 working days
Added
Price Each
SGD132.95
(exc. GST)
SGD144.92
(inc. GST)
| Units | Per unit |
| 1 + | SGD132.95 |
- RS Stock No.:
- 208-5462
- Mfr. Part No.:
- AQUAMEDIUMPVC06M
- Manufacturer:
- ATMI
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

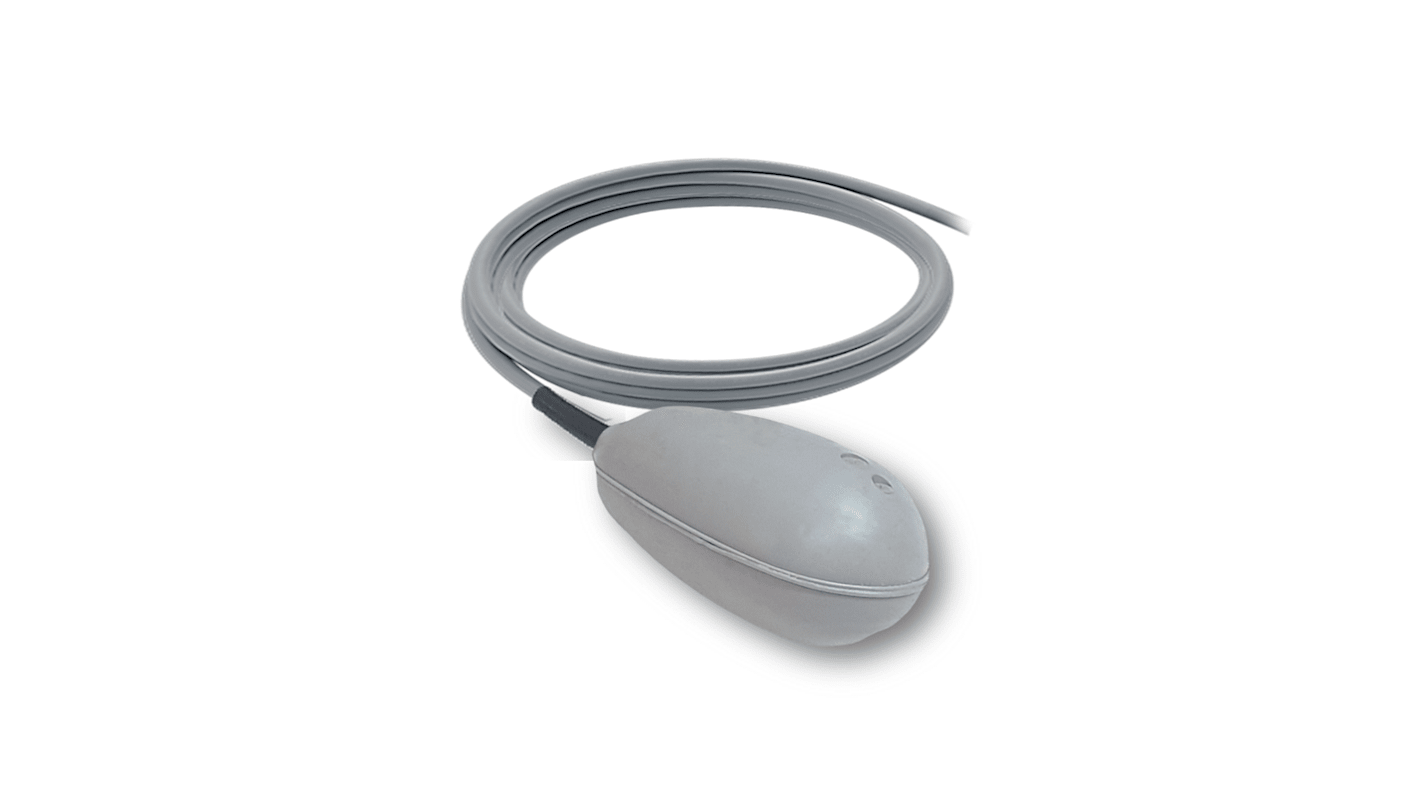

This robust level regulator is equipped with internal ballast. As the liquid level reaches the regulator, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel.
The AQUA MEDIUM is capable of penetrating the thick layers of grease found on waste water pumping stations, and it is the ideal level regulator for limited spaced applications.
This model is also available in a bigger version. See AQUA XL. The AQUA MEDIUM level regulator is not suitable for agitated liquids. Please choose our float switch models: BIP STOP, AT 120, or ATS 165.
The AQUA MEDIUM is capable of penetrating the thick layers of grease found on waste water pumping stations, and it is the ideal level regulator for limited spaced applications.
This model is also available in a bigger version. See AQUA XL. The AQUA MEDIUM level regulator is not suitable for agitated liquids. Please choose our float switch models: BIP STOP, AT 120, or ATS 165.
Maximum pressure 3.5 bar
Maximum temperature 70°C
Protection index IP68
Maximum temperature 70°C
Protection index IP68
Specifications
Attribute | Value |
|---|---|
| For Use With | Liquid Level Alarm and Pump Controller |
| Device Type | Float |
| Mounting Type | Cable Mount |
| Switch Output | SPDT |
| Body Material | Copolymer Polypropylene |
| Cable Length | 6m |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 125V |
| Maximum Pressure | 3.5bar |
