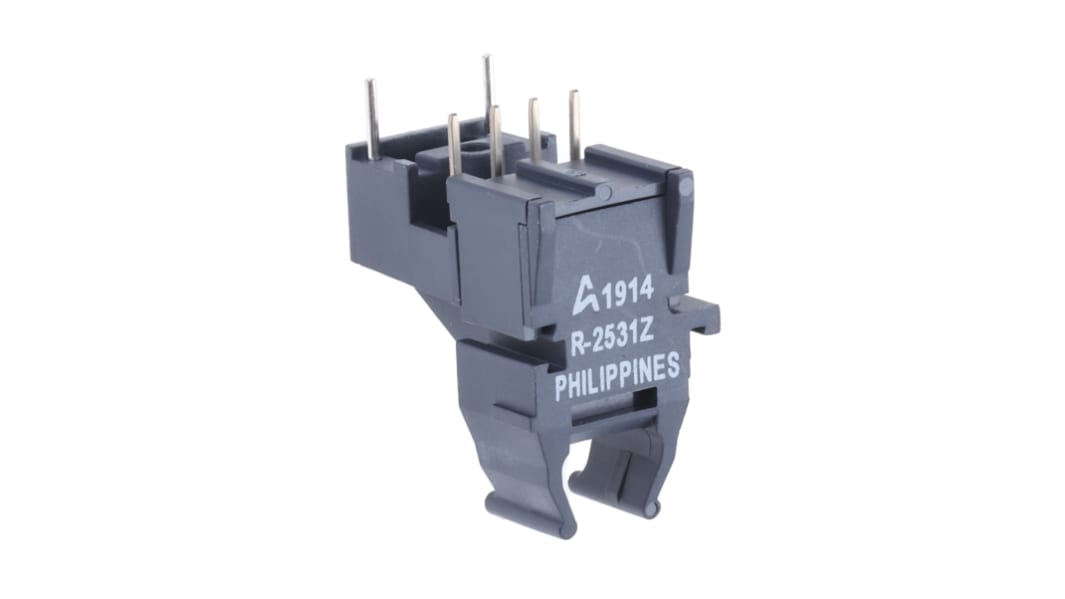

Broadcom HFBR-2531Z 5MBd 600Nm Fibre Optic Receiver, Round Push-in (V) Connector

  • RS Stock No. 236-745
  • Mfr. Part No. HFBR-2531Z
  • Manufacturer Broadcom
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

HFBR-0500Z Series Fibre Optic Connection

The HFBR-x5xxZ family, from Avago Technologies, form a part of the Versatile Link series. They are fibre optic link components including transmitters, receivers, connectors and cables. The HFBR-x5xxZ series are suitable solutions for problems with voltage isolation and insulation, EMI/RFI immunity or data security.
This family of devices consists of a variety of package configurations and connectors, providing a range of mechanical design solutions for the necessary application requirements.
The HFBR-x5xxZ transmitters use a 660nm LED for easy visibility. The receivers include a monolithic DC coupled, digital IC receiver with open collector Schottky output transistor.
The HFBR-x5xxZ series are ideal for a wide variety of applications including; motor controller triggering, data communications, local area networks and noise immune communication in audio and video equipment.

Features of the HFBR-x5xxZ series:
- Fibre optic components
- Enhanced digital links: dc-5 MBd
- Extended distance links: up to 120m at 40kBd
- Low current link: 6mA peak supply current
- Horizontal and vertical mounting
- Interlocking feature
- High noise immunity
- Easy connecting: simplex, duplex and latching connectors
- Flame retardant
- Compatible with standard TTL circuitry

Fibre Optics, Avago Technologies

Specifications
Attribute Value
Maximum Data Rate 5MBd
Connector Shape Round
Wavelength of Peak Sensitivity 600nm
Typical Rise Time 13ns
Typical Fall Time 10ns
Number of Pins 6
Mounting Type Through Hole
Dimensions 18.3 x 12.2 x 18.8mm
Connector Type V Push in
Height 18.8mm
Length 18.3mm
Width 12.2mm
780 In stock for delivery within 4 working days
Price Each
SGD 18.10
(exc. GST)
SGD 19.37
(inc. GST)
units
Per unit
1 - 9
SGD18.10
10 - 49
SGD17.46
50 - 99
SGD14.18
100 - 249
SGD13.87
250 +
SGD13.38
