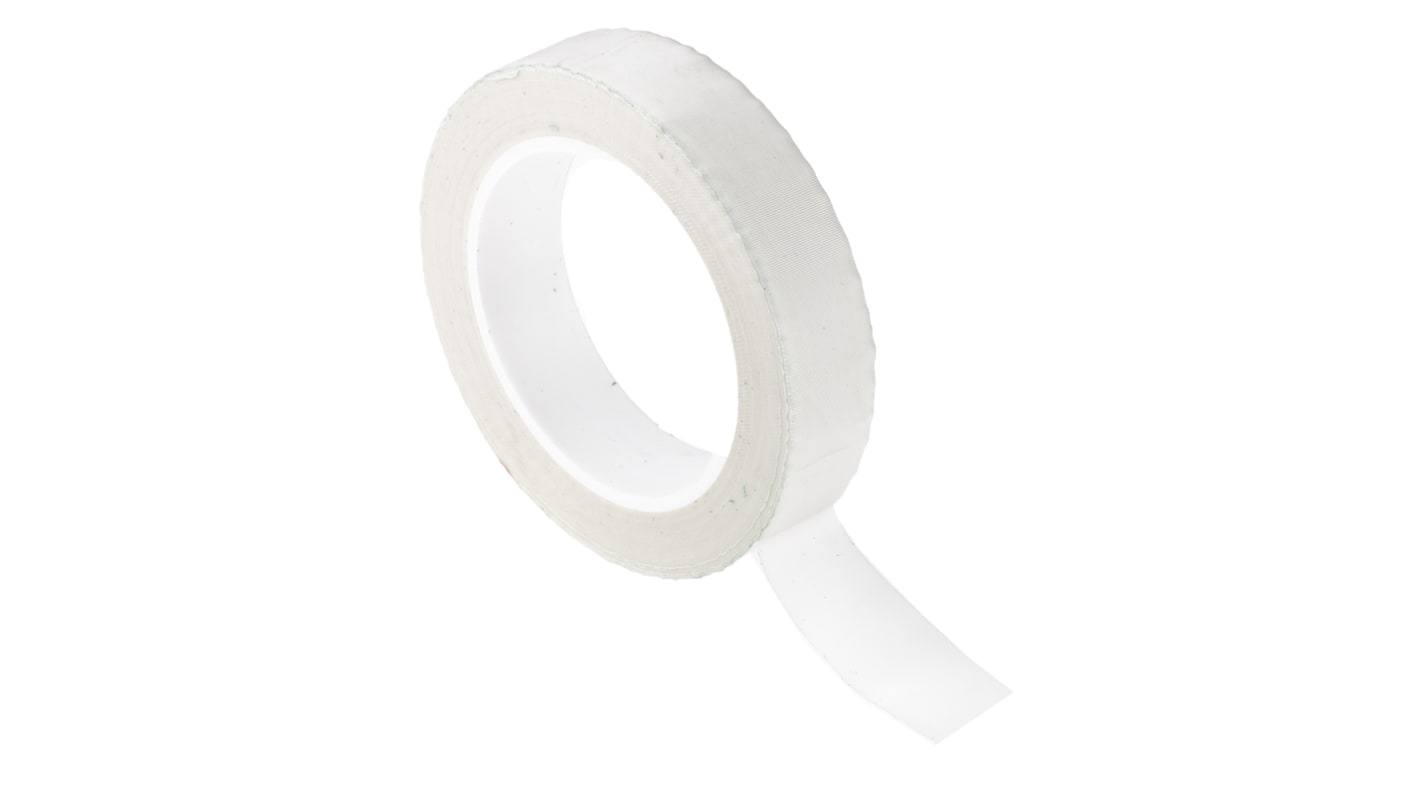

White Electrical Tape, 25mm x 33m

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Class H 180°C Glass Cloth Tape

A non-woven glass cloth with a silicone adhesive used in electrical insulation of coils, insulation of square conductors in traction motors and generators and tensional strapping of coils and armature windings.

Silicone adhesive
Flame retardant to UL510
Conforms to BS EN 60454-3-8 Type 3
Extremely high temperature resistance
High mechanical strength
Excellent resistance to acids and oils
Available in 33m length rolls, with a choice of 3 widths

Standards

UL listed

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour White
Width 25mm
Length 33m
Backing Material Glass Cloth
Thickness 0.18mm
Maximum Operating Temperature +180°C
Trade Name AT4003
460 In stock for delivery within 4 working days
Price 1 Reel of 33 Metre(s)
SGD 54.91
(exc. GST)
SGD 58.75
(inc. GST)
Reel(s)
Per Reel
Per Metre*
1 - 4
SGD54.91
SGD1.664
5 - 9
SGD53.26
SGD1.614
10 +
SGD52.13
SGD1.58
*price indicative
