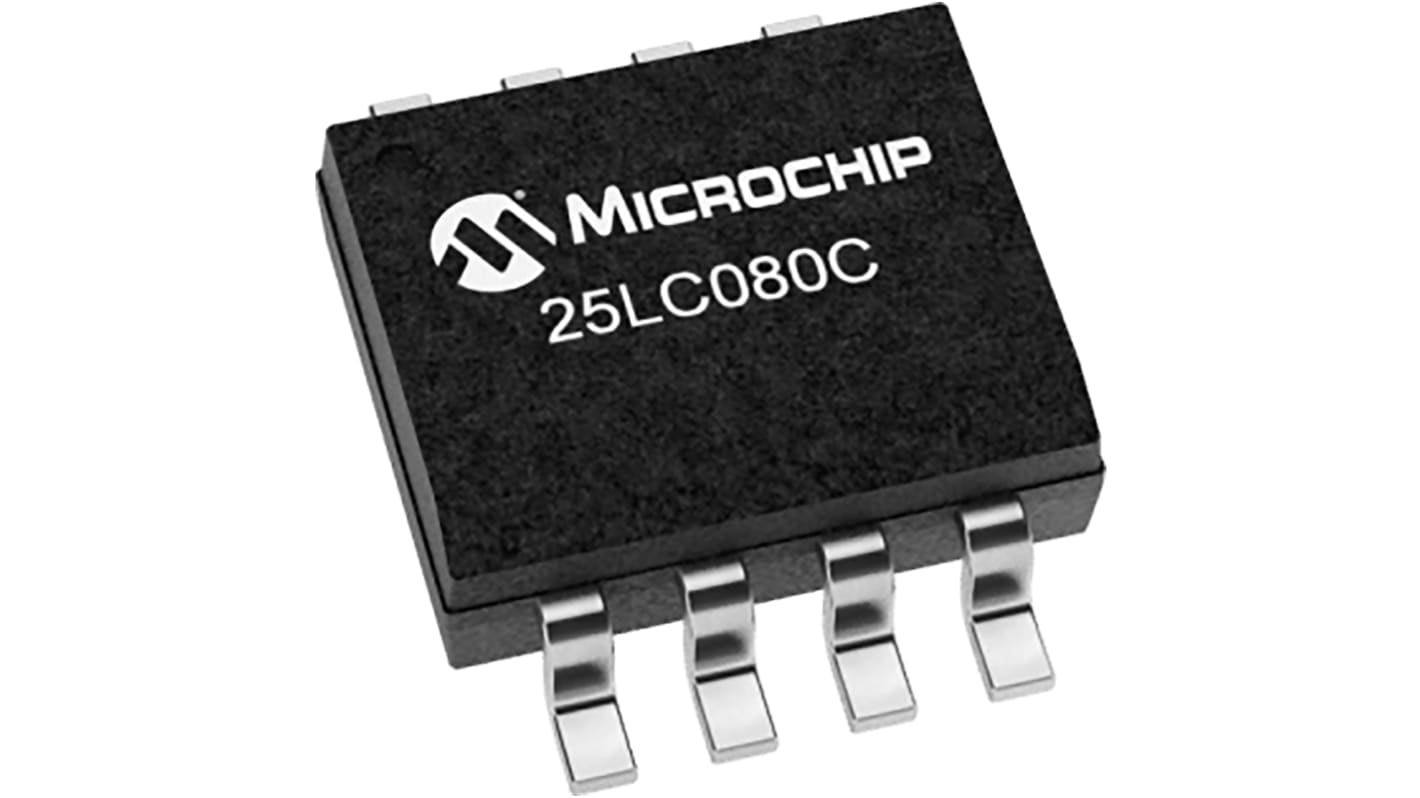

Microchip 25LC080C-I/SN, 8kbit Serial EEPROM Memory, 50ns 8-Pin SOIC Serial-SPI
- RS Stock No.:
- 177-1689
- Mfr. Part No.:
- 25LC080C-I/SN
- Manufacturer:
- Microchip
Temporarily out of stock - back order for despatch 29/05/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 20)
SGD1.033
(exc. GST)
SGD1.126
(inc. GST)
| Units | Per unit | Per Pack* |
| 20 - 20 | SGD1.033 | SGD20.66 |
| 40 + | SGD1.007 | SGD20.14 |
| *price indicative | ||
- RS Stock No.:
- 177-1689
- Mfr. Part No.:
- 25LC080C-I/SN
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
The Microchip 25LC080C is a 8Kb Serial EEPROM utilizing the industry standard Serial Peripheral Interface (SPI) compatible serial bus.
Additional Features: 1024 x 8-bit (8 Kbit)
Serial Peripheral Interface (SPI) Compatible
Supports SPI modes 0 and 3
Up to 10 MHz clock frequency
Self-Timed Erase and Write Cycles (5 ms max.)
Low Power Consumption:
Read current: 5 mA (Max) at 10 MHz
Write current: 5 mA (Max) at 10 MHz
Standby current: 5 μA (Max) at 5.5 V Block Write Protection: Protect 1/4, 1/2 or Entire Array
More than 1 million erase/write cycles
Data retention > 200 years Temperature Ranges Available
Industrial (I): -40°C to 85°C
Extended (E): -40°C to +125°C
Extended+ (H): -40°C to +150°C
Factory Programming Available
Available in standard packages including 8-lead PDIP and SOIC, and advanced packages including 8-lead MSOP, 8-lead TSSOP and 8-lead 2x3 TDFN
Serial Peripheral Interface (SPI) Compatible
Supports SPI modes 0 and 3
Up to 10 MHz clock frequency
Self-Timed Erase and Write Cycles (5 ms max.)
Low Power Consumption:
Read current: 5 mA (Max) at 10 MHz
Write current: 5 mA (Max) at 10 MHz
Standby current: 5 μA (Max) at 5.5 V Block Write Protection: Protect 1/4, 1/2 or Entire Array
More than 1 million erase/write cycles
Data retention > 200 years Temperature Ranges Available
Industrial (I): -40°C to 85°C
Extended (E): -40°C to +125°C
Extended+ (H): -40°C to +150°C
Factory Programming Available
Available in standard packages including 8-lead PDIP and SOIC, and advanced packages including 8-lead MSOP, 8-lead TSSOP and 8-lead 2x3 TDFN
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Memory Size | 8kbit |
| Interface Type | Serial-SPI |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 1024 Word x 8 bit |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 2.5 → 5.5V |
| Number of Bits per Word | 8bit |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Random Access Time | 50ns |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +85 °C |
| Number of Words | 1024 |
| Data Retention | 200yr |
