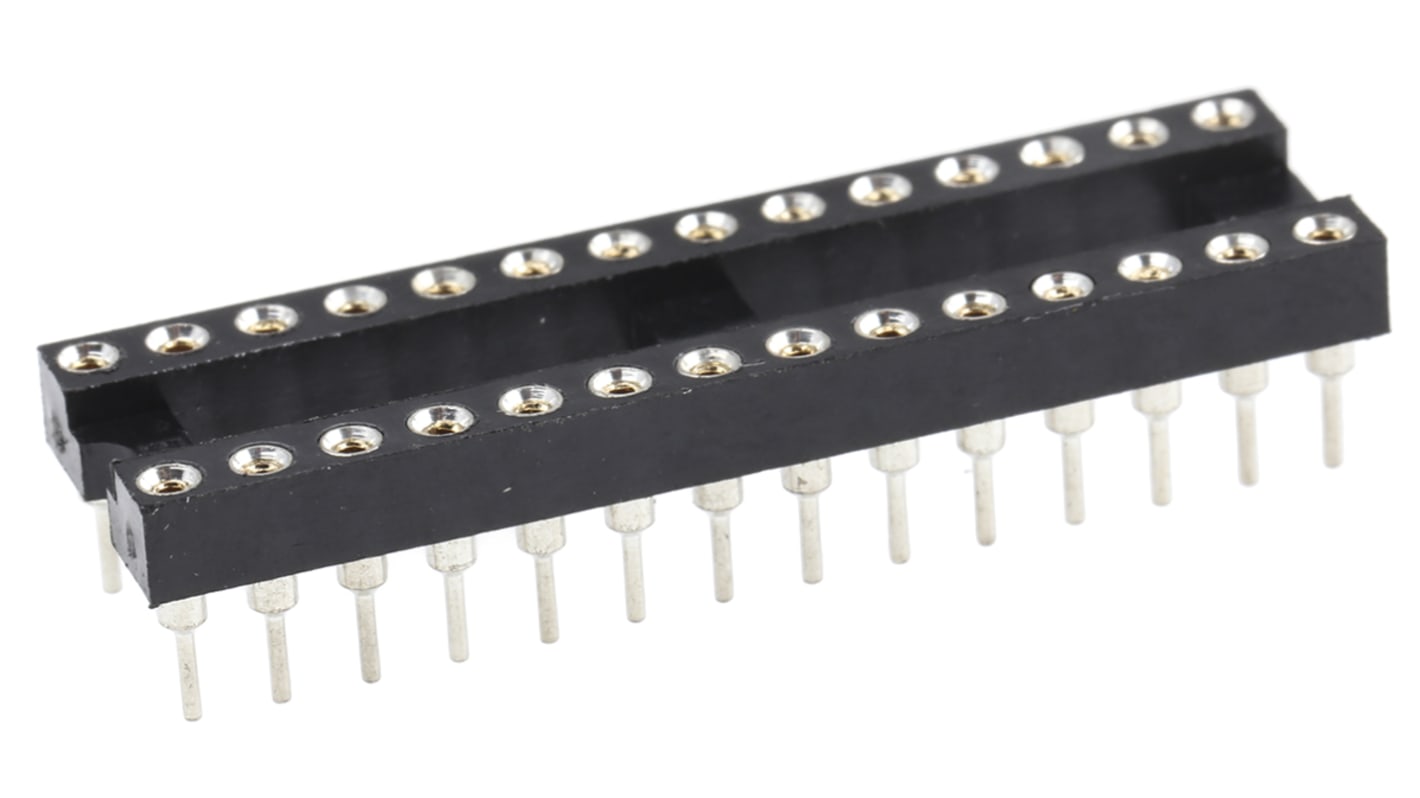

ASSMANN WSW 2.54mm Pitch Vertical 28 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A
- RS Stock No.:
- 674-2498
- Mfr. Part No.:
- AR 28 HZL/7-TT
- Manufacturer:
- ASSMANN WSW
280 In stock for delivery within 4 working days
Added
Price Each (In a Pack of 10)
SGD2.517
(exc. GST)
SGD2.744
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 740 | SGD2.517 | SGD25.17 |
| 750 - 3990 | SGD2.464 | SGD24.64 |
| 4000 + | SGD2.39 | SGD23.90 |
| *price indicative | ||
- RS Stock No.:
- 674-2498
- Mfr. Part No.:
- AR 28 HZL/7-TT
- Manufacturer:
- ASSMANN WSW
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Assmann 2.54mm Open Frame IC DIP Sockets with Turned Pin Contacts
A range of open frame IC DIP sockets with a 2.54mm pitch. These 2.54mm PCB through hole mount IC DIP sockets have a black UL94V-0 PBT insulator and tin plated turned pin contacts.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 28 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 35.56mm |
| Width | 10.16mm |
| Depth | 3mm |
| Dimensions | 35.56 x 10.16 x 3mm |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 100 V ac |
| Maximum Operating Temperature | +105°C |
| Housing Material | PBT |
| Contact Material | Brass, Phosphor Bronze |
