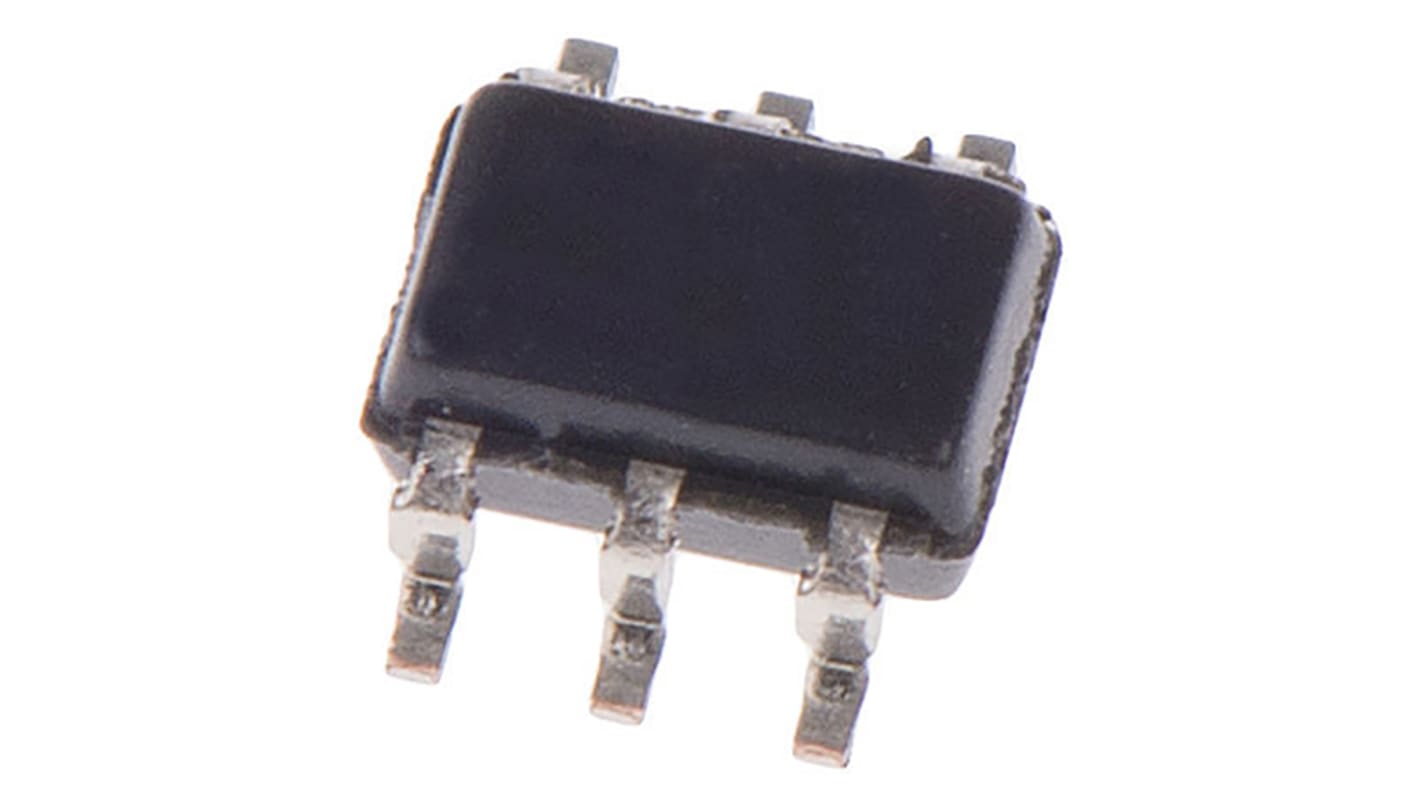

INA214AIDCKT Texas Instruments, Current Sense Amplifier Single 6-Pin SC-70
- RS Stock No.:
- 709-9117
- Mfr. Part No.:
- INA214AIDCKT
- Manufacturer:
- Texas Instruments
40 In stock for delivery within 4 working days
Added
Price Each
SGD2.11
(exc. GST)
SGD2.30
(inc. GST)
| Units | Per unit |
| 1 - 2 | SGD2.11 |
| 3 - 4 | SGD2.03 |
| 5 + | SGD1.90 |
- RS Stock No.:
- 709-9117
- Mfr. Part No.:
- INA214AIDCKT
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
Current Sense Amplifiers Analogue Output, Texas Instruments
Current and power measurement for real-time system protection, feedback control and high-accuracy system monitoring.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
Specifications
Attribute | Value |
|---|---|
| Power Supply Type | Single |
| Typical Single Supply Voltage | 12 V, 15 V, 18 V, 24 V, 3 V, 5 V, 9 V |
| Minimum CMRR | 105dB |
| Number of Channels per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 6 |
| Dimensions | 2 x 1.25 x 0.9mm |
| Height | 0.9mm |
| Length | 2mm |
| Maximum Operating Supply Voltage | 26 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Temperature | +125 °C |
| Width | 1.25mm |
