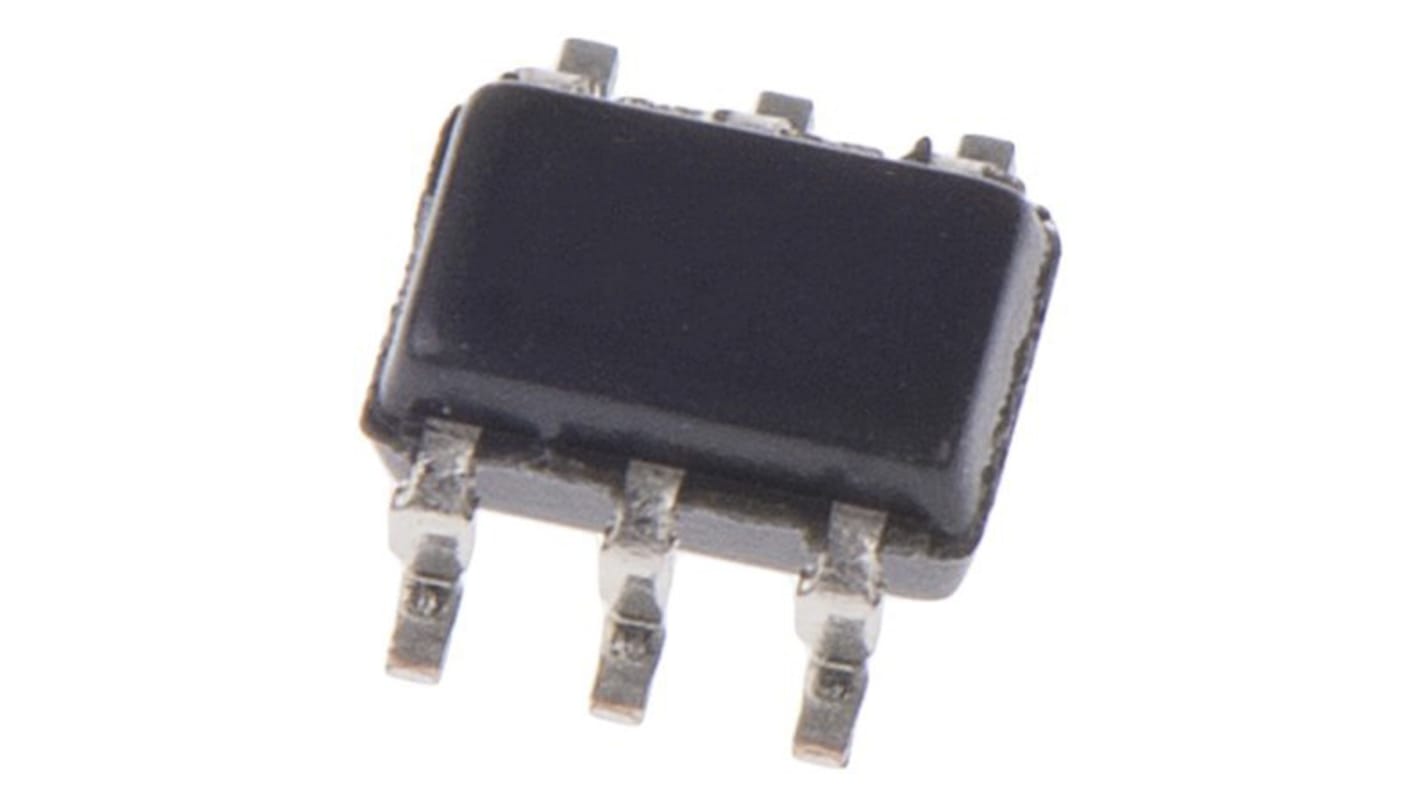

NCS210RSQT2G onsemi, Current Sense Amplifier Single Rail to Rail 6-Pin SC-70
- RS Stock No.:
- 185-8086
- Mfr. Part No.:
- NCS210RSQT2G
- Manufacturer:
- onsemi
Temporarily out of stock - back order for despatch 25/06/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 3000)
SGD0.515
(exc. GST)
SGD0.561
(inc. GST)
| Units | Per unit | Per Reel* |
| 3000 + | SGD0.515 | SGD1,545.00 |
| *price indicative | ||
- RS Stock No.:
- 185-8086
- Mfr. Part No.:
- NCS210RSQT2G
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Wide common mode input range -0.3 V to 26 V
Low offset voltage ± 150 μV Max
Low Offset Drift: 0.5 μV/°C
Supply voltage range from 2.2 V to 26 V
High-Side Current Sensing for High Voltage Systems
Low Ohm value Current Sense Resistors
High accuracy over temperature leading to better power efficiency
Wide supply voltage range provides system flexibility
Current Sensing (High-Side/Low-Side)
Applications
Power Monitoring
Power Adapters
LED Power Supply
Over Current Protection
Automotive
Closed Loop Feedback Circuits
End Products
White Goods
Automotive
Lighting
Laptop/Notebooks PC
Fast Chargers in Smartphones and Tablets
Telecom DC-DC modules
E- Cigarettes
Computing Servers
Low offset voltage ± 150 μV Max
Low Offset Drift: 0.5 μV/°C
Supply voltage range from 2.2 V to 26 V
High-Side Current Sensing for High Voltage Systems
Low Ohm value Current Sense Resistors
High accuracy over temperature leading to better power efficiency
Wide supply voltage range provides system flexibility
Current Sensing (High-Side/Low-Side)
Applications
Power Monitoring
Power Adapters
LED Power Supply
Over Current Protection
Automotive
Closed Loop Feedback Circuits
End Products
White Goods
Automotive
Lighting
Laptop/Notebooks PC
Fast Chargers in Smartphones and Tablets
Telecom DC-DC modules
E- Cigarettes
Computing Servers
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.2 → 26 V |
| Minimum CMRR | 105dB |
| Number of Channels per Chip | 1 |
| Output Type | Rail to Rail |
| Maximum Supply Current | 60 μA |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Pin Count | 6 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Height | 1mm |
| Length | 2.2mm |
| Maximum Operating Supply Voltage | 26 V |
| Minimum Operating Supply Voltage | 2.2 V |
| Minimum Operating Temperature | -40 °C |
| Width | 1.35mm |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +125 °C |
