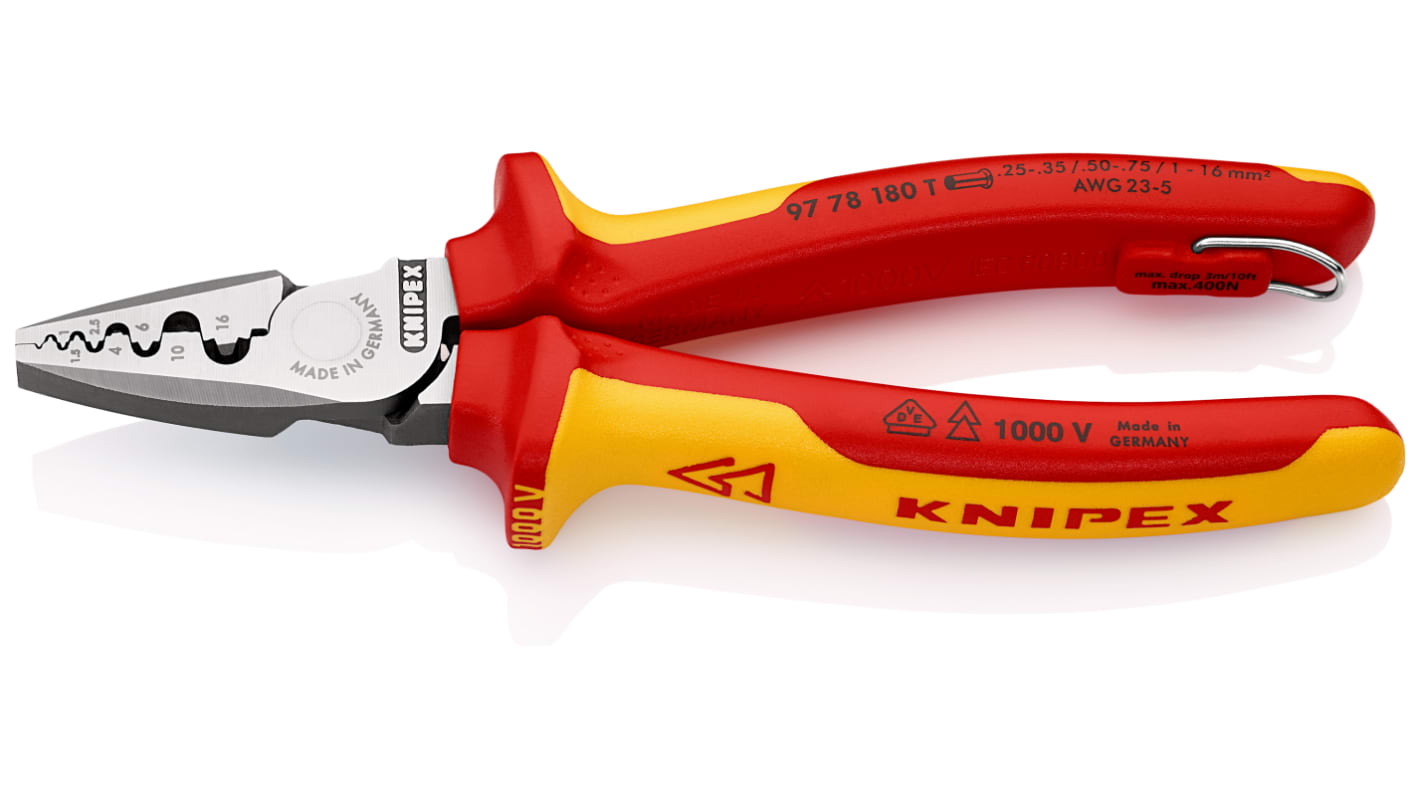

Knipex Plier Crimping Tool for Crimp Terminal

  • RS Stock No. 136-7493
  • Mfr. Part No. 97 78 180 T
  • Manufacturer Knipex
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Knipex Crimping Pliers for End Sleeves

The Knipex crimping pliers are designed to crimp end sleeves (ferrules) from 0.25 mm² to 16 mm². The high leverage handles, improve the effort for crimping by 30% compared to normal pliers. Crimping in marked half round dies for reliable connections between the sleeve and conductor. Forged from a high grade of special steel, oil hardened for added strength and durability.

Features and Benefits

Crimps end sleeves from 0.25 mm² to 16 mm² Improve leverage
Light and slim design
VDE tested

Specifications
Attribute Value
Crimp Tool Type Plier
Crimp Connector Type Crimp Terminal
Overall Length 180mm
4 Within 3 working day(s) (Global stock)
30 Within 4 working day(s) (Global stock)
Price Each
SGD 81.16
(exc. GST)
SGD 86.84
(inc. GST)
units
Per unit
1 +
SGD81.16
