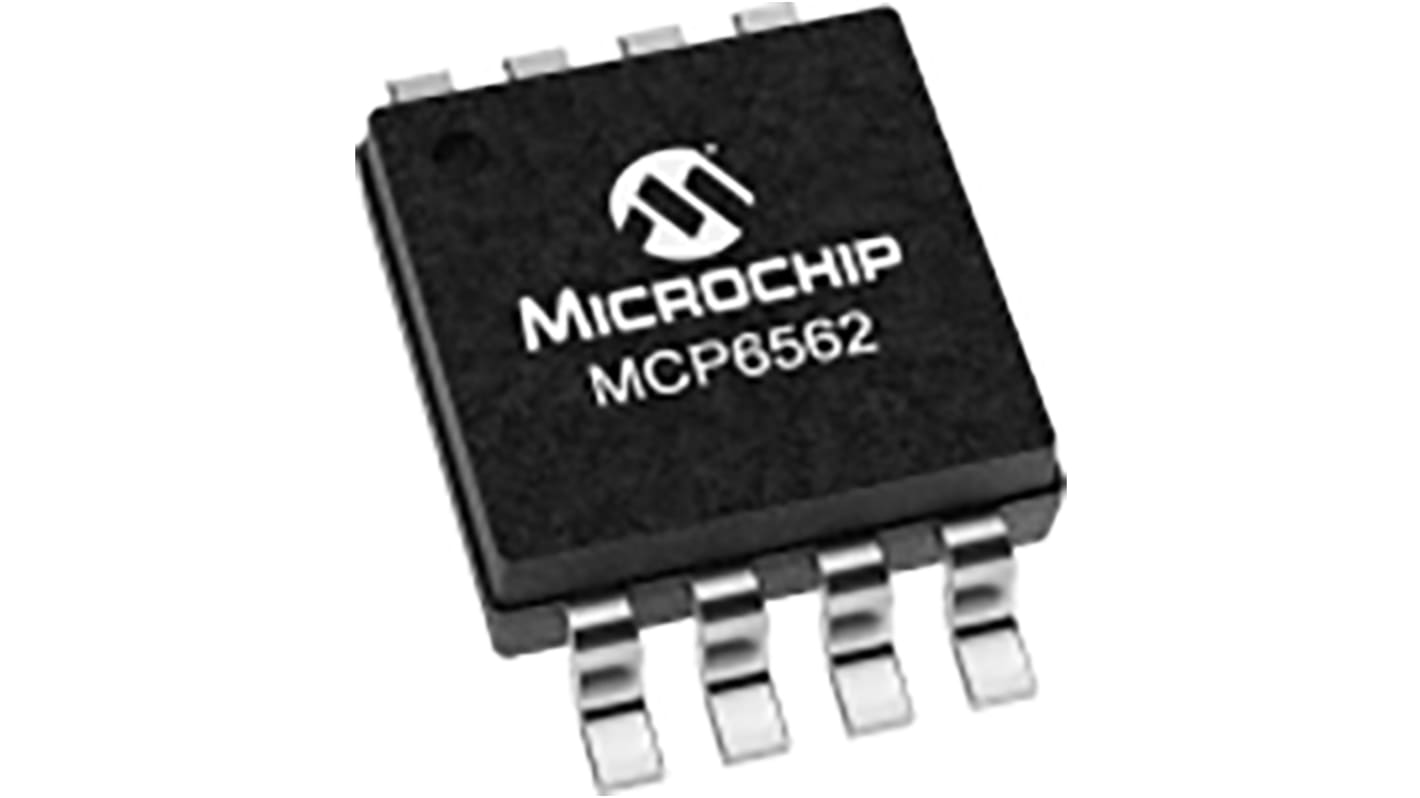

MCP6562T-E/MS Microchip, Dual Comparator & Voltage Reference, Push-Pull O/P, 56ns 8-Pin MSOP
- RS Stock No.:
- 177-3173
- Mfr. Part No.:
- MCP6562T-E/MS
- Manufacturer:
- Microchip
2320 In stock for delivery within 4 working days
Added
Price Each (In a Pack of 20)
SGD1.197
(exc. GST)
SGD1.305
(inc. GST)
| Units | Per unit | Per Pack* |
| 20 - 20 | SGD1.197 | SGD23.94 |
| 40 - 80 | SGD1.176 | SGD23.52 |
| 100 - 180 | SGD1.124 | SGD22.48 |
| 200 + | SGD1.025 | SGD20.50 |
| *price indicative | ||
- RS Stock No.:
- 177-3173
- Mfr. Part No.:
- MCP6562T-E/MS
- Manufacturer:
- Microchip
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
These comparators are optimized for low power, single-supply operation with greater than rail-to-rail input operation. The push-pull output of the MCP6561/2/4 family supports rail-to-rail output swing, and interfaces with TTL/CMOS logic. The output limits supply current surges, and dynamic power consumption while switching.
Dual, Push-Pull Outputs
47ns Propogation Delay
Low Operating Voltage, 1.8V to 5.5V
Low Operating Current, 100uA (typical)
Rail-to-Rail Input/Output
Small 8-pin MSOP Package
47ns Propogation Delay
Low Operating Voltage, 1.8V to 5.5V
Low Operating Current, 100uA (typical)
Rail-to-Rail Input/Output
Small 8-pin MSOP Package
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Comparator Type | Rail to Rail |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Power Supply Type | Dual |
| Output Type | Push-Pull |
| Number of Channels per Chip | 2 |
| Typical Response Time | 56ns |
| Pin Count | 8 |
| Dimensions | 3 x 3 x 0.95mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.95mm |
| Typical CMRR | 66dB |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +125 °C |
| Typical PSRR | 70dB |
| Minimum Operating Temperature | -40 °C |
