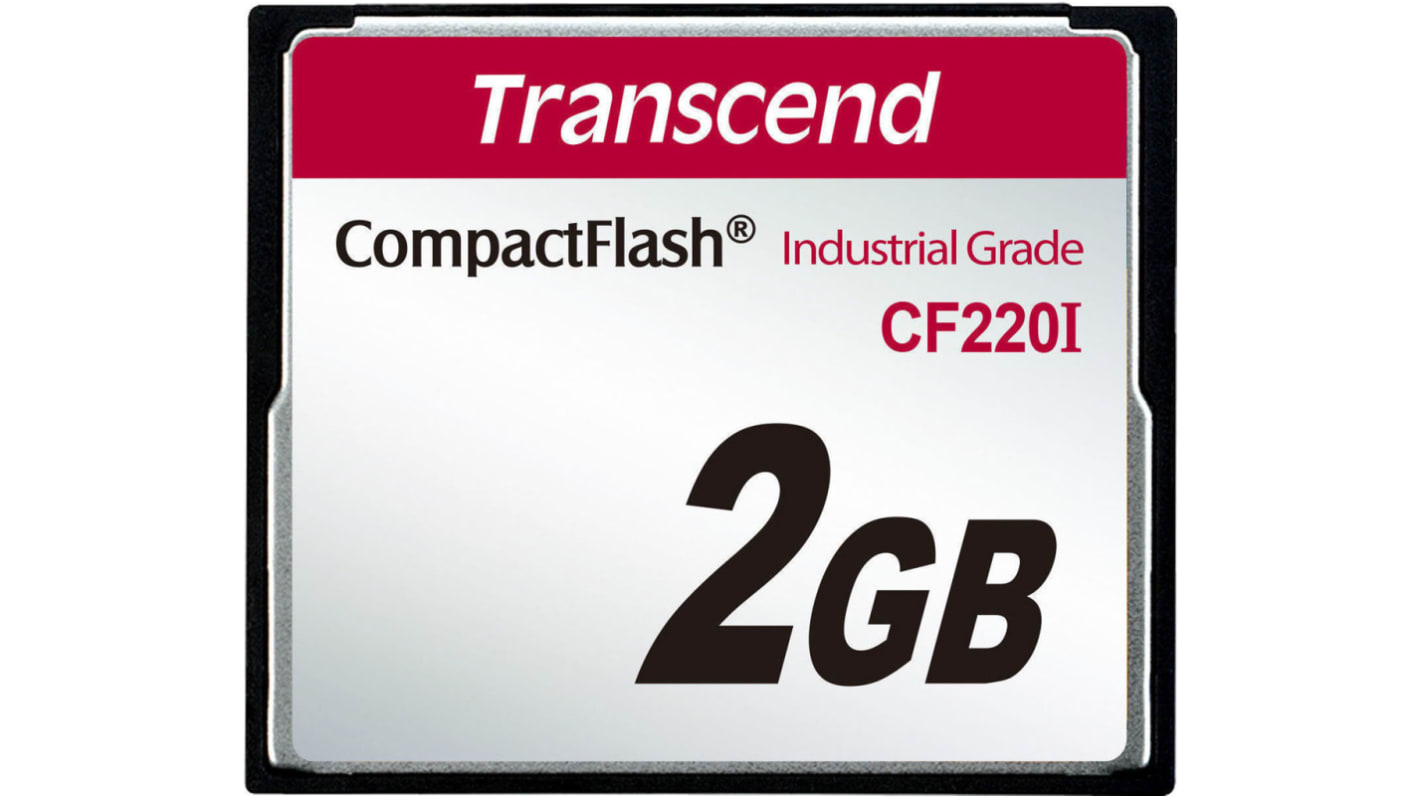

Transcend CF220I CompactFlash 2 GB SLC Compact Flash Card

  • RS Stock No. 124-9676
  • Mfr. Part No. TS2GCF220I
  • Manufacturer Transcend
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Transcend Compact FlashCard

The Transcend industrial SLC compact FlashCard has a storage capacity of 2GB. It can be operated on several modes like PC Card Memory Mode, PC Card IO Mode and True IDE Mode. This card is ruggedized and features excellent temperature flexibility while delivering on performance with a Read rate of 40 MB/s and Write rate of 42 MB/s. it is specifically designed for industrial use and mission-critical applications.

Features and Benefits

CompactFlash Specification Version 6.0 compliant
Operation Modes: PC Card Memory, PC Card IO, True IDE
PC Card Mode: Fixed Disk (Default)
Power Shield prevents data loss in the event of a sudden power outage
Support Global Wear-Levelling, Static Data Refresh, Early Retirement and Erase Count Monitor functions to extend product life
Support S.M.A.R.T (Self-defined)
Support Security Command
True IDE Mode supports: UDMA0-5, MDMA0-4, PIO0-6 (UDMA5 as default)
True IDE Mode: Fixed Disk (Default)

Specifications
Attribute Value
Capacity 2 GB
Industrial Yes
Card Format CompactFlash
Nand Type SLC
Model CF220I
23 Within 1 working day(s) when ordered before 3.30 pm.
20 Within 4 working day(s) (Global stock)
Price Each
SGD 89.19
(exc. GST)
SGD 95.43
(inc. GST)
units
Per unit
1 +
SGD89.19
