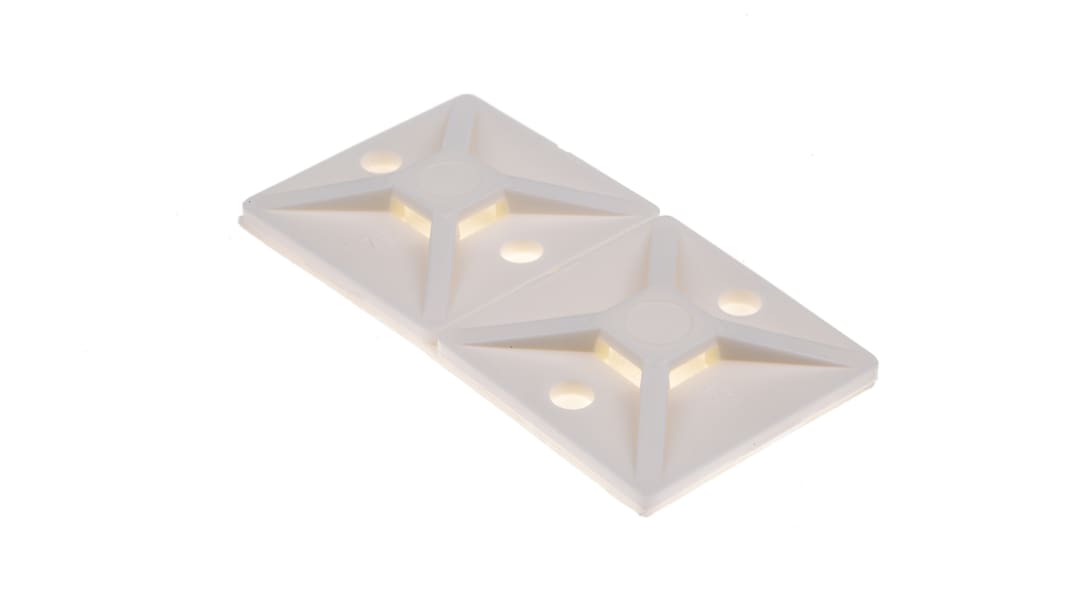

HellermannTyton Self Adhesive Natural Cable Tie Mount 28 mm x 28mm, 5.4mm Max. Cable Tie Width

  • RS Stock No. 190-3326
  • Mfr. Part No. 151-28469 MB4A-PA66-WH (100)
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

MB Self Adhesive Cable Tie Mounts

Self adhesive cable tie mounts that provide a fast and simple way of securing cable ties. MB series mounting bases allow cable ties to be inserted from all 4 sides. Ideal for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws or nuts and bolts is impractical or undesirable.


Features and Benefits
• Self adhesive
• Quick assembly in clean applications
• Allows 4 way entry for cable ties
• Ideal for use where panel access is limited or holes are undesirable
• Stabilise and secure wiring bundles
• Flame retardant (UL94 V2 rating without adhesive)

The range includes the following cable tie mounts with various cable tie width acceptance, lengths x widths (mm) and colours:
131-0242 - Black 13 x 13
131-0243 - Black 19 x 19
131-0244 - White 19 x 19
131-0245 - Black 28 x 28
131-0246 - White 28 x 28
131-0247 - Black 38 x 38
131-0250 - Black 19 x 19
131-0251 - Black 28 x 28
131-0252 - Black 38 x 38
190-3326 – Natural 28 x 28
190-3354 - White 37.7 x 37.7
219-875 - Black 19 x 19
359-2063 - Natural 19 x 19
385-3885 - Natural 13 x 13
600-931 - Natural 19 x 19

Typical Applications
These cable tie mounts are suitable for the following markets and industries:
Rail Transportation
Electronics Industry
Aerospace Industry
Shipbuilding
Defence Industry

Specifications
Attribute Value
Colour Natural
Cable Tie Width Acceptance 5.4mm
Length 28mm
Width 28 mm
Fixing Hole Diameter 4mm
Self Adhesive Yes
Material Nylon 66
Series MB
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Quantity 100
19 Within 1 working day(s) when ordered before 3.30 pm.
199 Within 4 working day(s) (Global stock)
Price 1 Bag of 100
SGD 44.83
(exc. GST)
SGD 47.97
(inc. GST)
Bag(s)
Per Bag
Per unit*
1 - 14
SGD44.83
SGD0.448
15 - 49
SGD43.70
SGD0.437
50 +
SGD42.55
SGD0.426
*price indicative
