Microchip MCP1623T-I/CHY, Boost Regulator 50mA Adjustable, 630 kHz 6-Pin, SOT-23

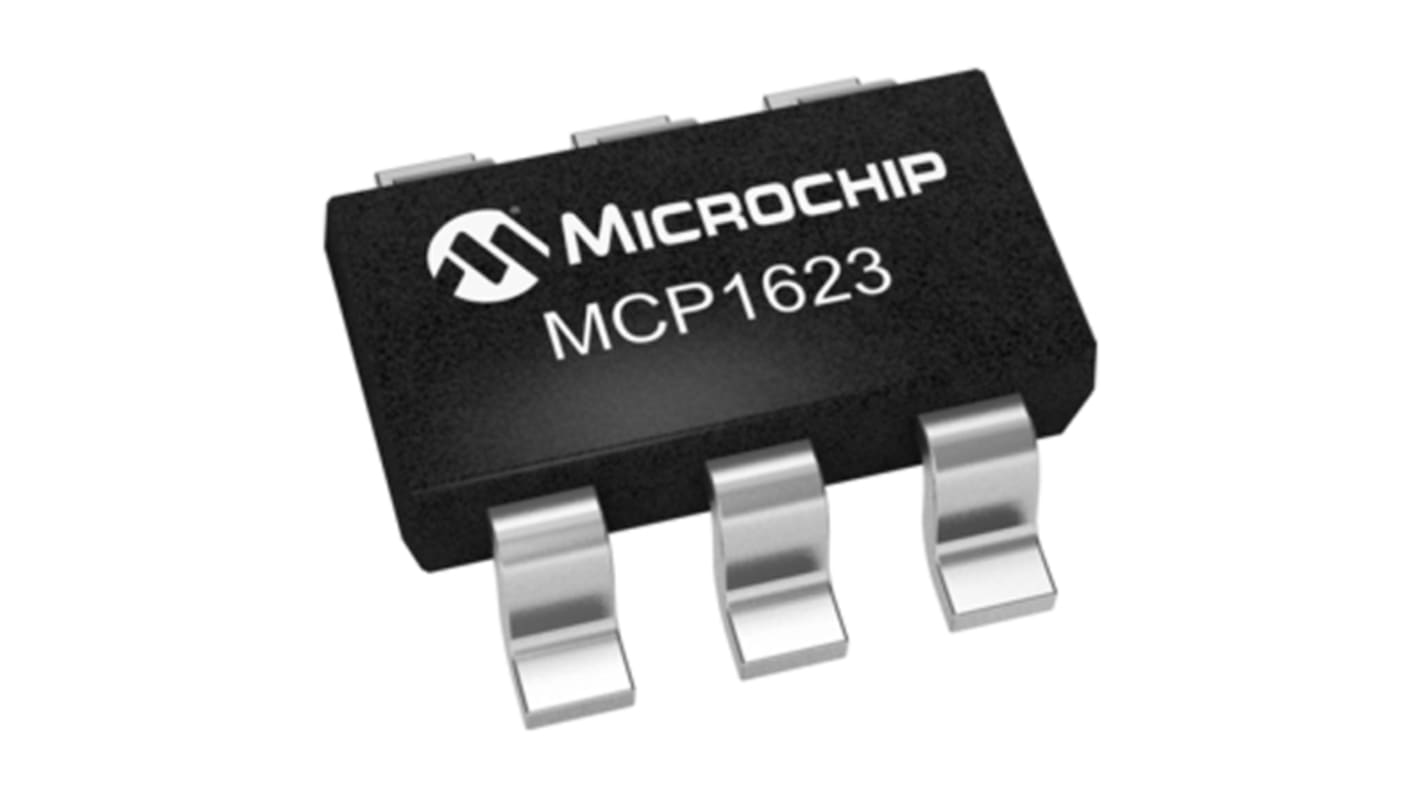

This image is representative of the product range


3000 In stock for delivery within 4 working days
Add to Basket

Price Each (On a Reel of 3000)

SGD0.476

(exc. GST)

SGD0.509

(inc. GST)

units

Added

RS Stock No.:
165-2234
Mfr. Part No.:
MCP1623T-I/CHY
Manufacturer:
Microchip
COO (Country of Origin):
TH
unitsPer unitPer Reel*
3000 +SGD0.476SGD1,428.00
*price indicative

MCP1623/1624 Synchronous Boost Converter


The Microchip MCP1623 and MCP1624 are Adjustable, Fixed Frequency, Synchronous Step-Up DC-DC Converters. Primarily they are designed to offer a compact and highly efficient power supply solution for PIC Microcontrollers in one-, two- and three-cell battery powered applications. The desired output voltage of the device is set by the application of a small external resistor divider.

The design allows the regulator to start up without high inrush current or output voltage overshoot from a low 0.65 V input. Combined is a low-resistance N-Channel Boost Switch and Synchronous P-Channel Switch to offer high efficiency. All compensation and protection circuitry is integrated into the device to minimise the required external components.

Also featured is a Load Disconnect mode that provides input to output isolation while disabled. This mode consumes less than 1 μA of input current.


Features


Up to 96% Typical Efficiency
425 mA Typical Peak Input Current Limit
Low Start Up Voltage: 0.65 V (typical) @ 3.3 V VOUT, 1 mA
Low Operating Input Voltage: 0.35 V (typical) @ 3.3 V VOUT, 1 mA
Adjustable Output Voltage Range: 2.0 V to 5.5 V
Automatic PFM/PWM Operation – MCP1624 model only
PWM-only Operation – MCP1623 model only
500 kHz PWM Frequency
Low Device Quiescent Current: 19 μA (typical, PFM mode)
Internal Synchronous Rectifier
Internal Compensation
Inrush Current Limiting and Internal Soft-Start
True Load Disconnect
Shutdown Current: < 1 μA
Low Noise, Anti-Ringing Control
Over-temperature Protection


AttributeValue
Maximum Output Current50mA
Number of Outputs1
Line Regulation0.01 %/V
Load Regulation0.01 %/V
Mounting TypeSurface Mount
Package TypeSOT-23
Pin Count6
Output TypeAdjustable
Maximum Switching Frequency630 kHz
Efficiency96%
Dimensions3.1 x 1.8 x 1.3mm
Height1.3mm
Length3.1mm
Minimum Output Voltage2 V
Maximum Operating Temperature+125 °C
Maximum Output Voltage5.5 V
Minimum Input Voltage0.65 V
Minimum Operating Temperature-40 °C
Maximum Input Voltage5.5 V
Width1.8mm
