RS PRO Hooked Insulated Crimp Blade Terminal 17.4mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue
4200 In stock for delivery within 4 working days
Price Each (In a Pack of 100)
SGD0.117
(exc. GST)
SGD0.125
(inc. GST)
| units | Per unit | Per Pack* |
| 100 - 400 | SGD0.117 | SGD11.70 |
| 500 - 2400 | SGD0.112 | SGD11.20 |
| 2500 - 4900 | SGD0.106 | SGD10.60 |
| 5000 - 9900 | SGD0.099 | SGD9.90 |
| 10000 + | SGD0.093 | SGD9.30 |
| *price indicative | ||
Added
- RS Stock No.:
- 267-4079
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- TW
RS Pro Insulated Double Crimp Hook Blade Terminals
Features & Benefits
Note
Approvals
| Attribute | Value |
| Gender | Male |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Minimum Wire Size mm² | 1.5mm² |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |

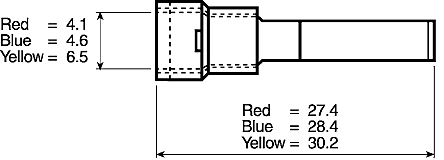

| Overall Length | 28.2mm |
| Inner Diameter | 5.2mm |
| Blade Length | 17.4mm |
| Blade Width | 3mm |
| Blade Thickness | 0.8mm |
| Hooked | Yes |
| Colour | Blue |
| Contact Plating | Tin |
| Contact Material | Copper |
