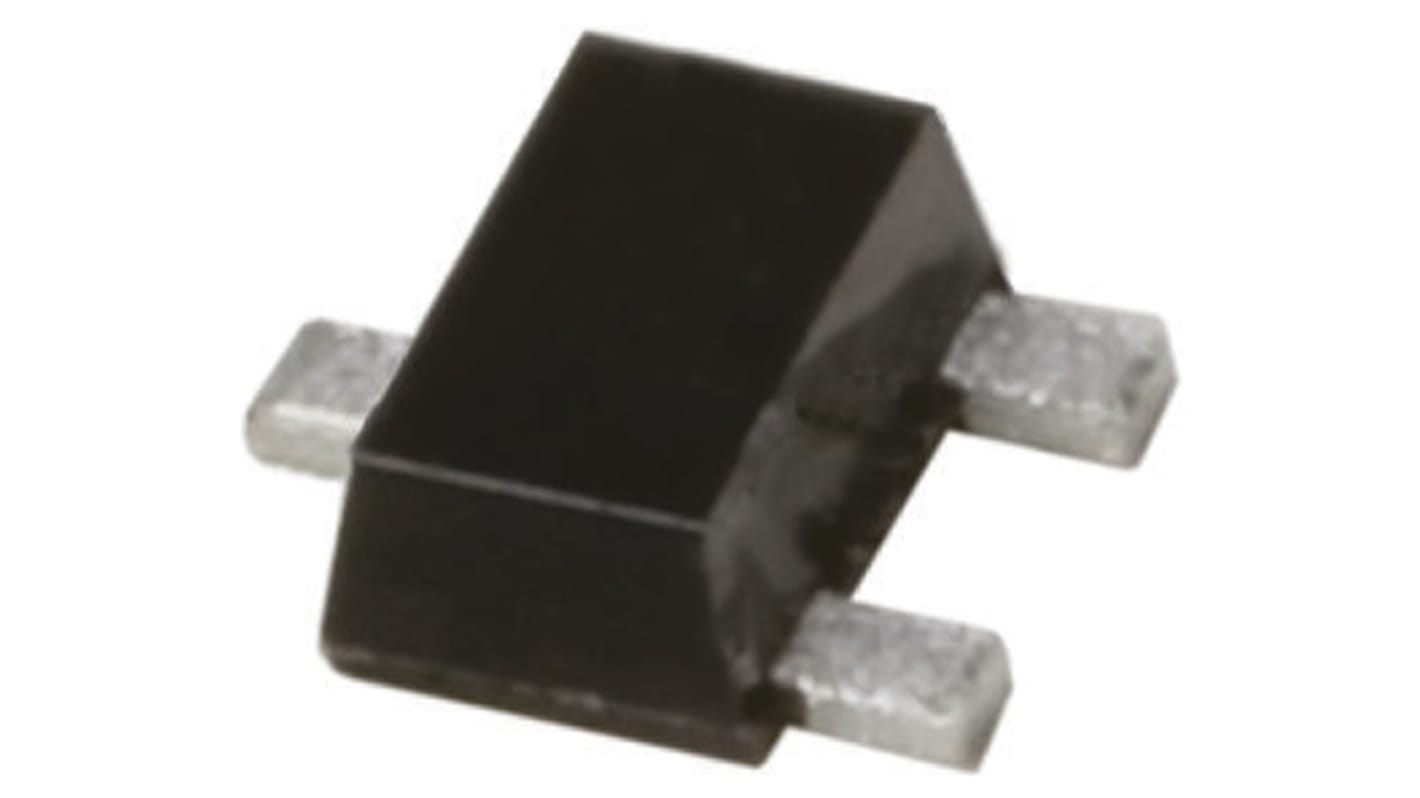

Texas Instruments Fixed Shunt Voltage Reference 5V ±0.1 % 3-Pin SOT-23, LM4040AIM3-5.0/NOPB
- RS Stock No.:
- 536-1568
- Mfr. Part No.:
- LM4040AIM3-5.0/NOPB
- Manufacturer:
- Texas Instruments
670 In stock for delivery within 4 working days
Added
Price Each
Was SGD4.39
You pay
SGD4.17
(exc. GST)
SGD4.55
(inc. GST)
| Units | Per unit |
| 1 - 9 | SGD4.17 |
| 10 - 49 | SGD4.07 |
| 50 - 99 | SGD3.97 |
| 100 - 499 | SGD3.88 |
| 500 + | SGD3.78 |
- RS Stock No.:
- 536-1568
- Mfr. Part No.:
- LM4040AIM3-5.0/NOPB
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
Shunt Voltage Reference, Fixed, 3V to 10V
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Voltage References, Texas Instruments
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
Specifications
Attribute | Value |
|---|---|
| Nominal Voltage | 5V |
| Package Type | SOT-23 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.1 % |
| Mounting Type | Surface Mount |
| Topology | Shunt |
| Maximum Output Current | 15mA |
| Pin Count | 3 |
| Load Regulation | 8 mV |
| Dimensions | 2.92 x 1.3 x 0.93mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.93mm |
| Width | 1.3mm |
| Length | 2.92mm |
| Minimum Operating Temperature | -40 °C |
